Products Description

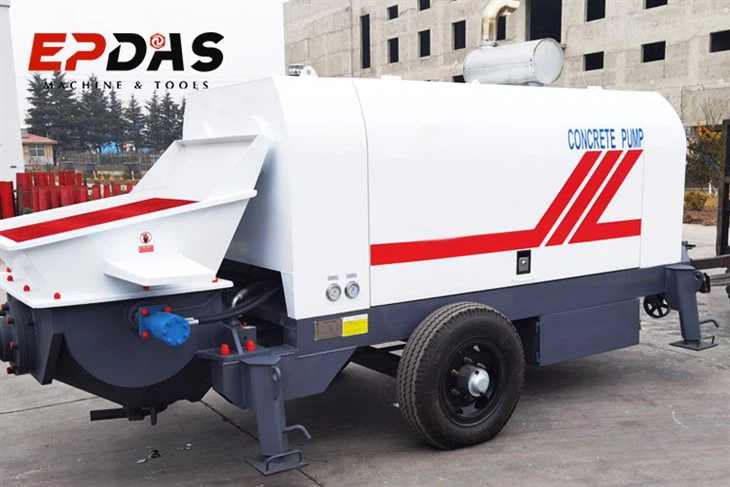

Mobile Concrete Pump Machine
The mobile concrete pump is an efficient construction solution in modern building concrete conveying equipment, integrating mobility, high efficiency and multi-functionality. It adopts a trailer chassis design, and the tires are convenient for towing and quick transfer.
The mobile concrete pump launched by EPDAS. features a powerful power system and a large displacement conveying capacity, ensuring a continuous and stable supply of concrete. Diesel/electric dual power options, suitable for various working environments.
Mobile concrete pump vs. Stationary concrete pump
Mobile concrete pump
The mobile concrete pump is equipped with a trailer structure and mobile tires, facilitating relocation and transportation. Suitable for urban-rural fringe areas, rural areas and temporary construction sites. It features high pumping pressure, long conveying distance and strong continuous working capacity, which can meet the construction requirements of large-scale concrete.
Stationary Concrete Pump
The pumping system of the fixed concrete pump is installed on a fixed towable chassis. It can theoretically transport concrete to any required place by manually connecting pipes continuously, without being limited by the length of the fixed boom. Suitable for large construction sites, urban infrastructure, and bridge and tunnel construction.
Operational Video of a Mobile Concrete Pump
The core characteristics of mobile concrete pumps
High-quality equipment accelerates construction progress and efficiency.
It has strong maneuverability and adopts a small tire-type movement, which can be freely towed and transferred to any construction site.
It can be started and used at any time. The integrated control panel supports one-click start and adjustment of the conveying speed, and the operation can be completed by a single person.
The pumping is stable, equipped with advanced diesel/motor power, meeting the requirements of small and medium-sized continuous pouring.
Save labor costs, eliminate the need for a large number of workers to transport concrete, and improve the overall utilization rate of the construction period.
Mobile concrete pump has a high degree of scene adaptability. The tire-type chassis can adapt to common scenarios such as hard roads and cement floors.
Flexible piping enables precise transportation at complex points and supports multi-form piping including "horizontal + vertical + curved".
Core configuration of mobile concrete pumps
Solid strength supports stable work
power system
It is compatible with imported diesel or electric engines. The diesel version is suitable for construction sites without power grids, while the motor version is energy-saving and quiet (suitable for residential area operations).
Mobile chassis
The mobile concrete pump reinforced tire chassis and hydraulic outriggers, welded with high-quality steel, can move on narrow roads or in complex working conditions, meeting diverse construction needs.
transport system
It is equipped with wear-resistant alloy delivery pipes, which are impact-resistant and wear-resistant. The pipes can be extended as needed. S-type swing pipe valve + double-cylinder reciprocating plunger pump, stable transportation
Intelligent control
Integrated control panel + emergency stop button, simple operation, real-time monitoring of pumping speed and pressure, and quick shutdown protection in case of abnormality. And it supports wired or wireless remote control for flexible operation.
EPDAS Mobile Concrete Pump Construction Case
EPDAS Concrete Pumps Deployed at Construction Sites Worldwide.
As a professional one-stop concrete machinery factory in China, EPDAS not only offers complete equipment manufacturing but also provides customers with global transportation, on-site installation, operation training and after-sales support. The products have been exported to many regions around the world and have won the trust of customers at home and abroad.
By integrating design, production, delivery and service resources, we help our clients save on procurement costs, shorten construction periods and improve overall construction efficiency. If you are pursuing rapid and efficient construction across multiple construction sites, please choose EPDAS 'mobile concrete pumps.
Why choose our mobile concrete pump?
Customized Configuration
We offer configuration customization services for different models based on customer demands.
High Quality
EPDAS focuses on the research and development and production of concrete equipment, with reliable quality.
Premium Service
7× 24-hour technical support, global transportation, and fast delivery.
One-stop Concrete machinery Factory in China
With advanced production techniques and strict quality control, we provide efficient, reliable and durable construction equipment for global customers.
The Three Questions People Care About
Q: What particle size of aggregates can a mobile concrete pump transport?
A: It is suitable for medium and fine aggregate concrete, with the maximum aggregate particle size ≤30mm. It is suitable for the transportation of ordinary concrete and mortar, but it is not recommended to transport large-particle crushed stone concrete (to avoid clogging).
Q: How far can it be transported at most? How high can it be delivered at most?
A: The horizontal conveying can reach up to 1,000 meters (with the need for extended pipes and pressure-increasing devices), and the vertical conveying can reach up to 250 meters, meeting the vast majority of scenarios in small and medium-sized projects.
Q: Is the later maintenance troublesome? Are consumable parts easy to buy?
A: The maintenance is simple. On a daily basis, only the conveying pipe needs to be cleaned and the sealing performance of the sealing ring needs to be checked. Wear parts (such as conveyor pipes, sealing rings, and pistons) are of general specifications and are supplied by the manufacturer for a long time.
Hot Tags: mobile concrete pump, China mobile concrete pump suppliers, manufacturers
Product Parameter
| Items | Units | DHBT60-13-118 | DHBT60-16-145 | DHBT80-13-145 | DHBT80-16-174 |
| Max. Theoretic delivery volume | m³/h | 60 | 60 | 80 | 80 |
| Max. Theoretic delivery pressure | Mpa | 12.5 | 15.7 | 12.5 | 15.7 |
| Max. Theoretic delivery height | m | 180 | 250 | 180 | 250 |
| Max. Theoretic delivery distance | m | 700 | 1000 | 700 | 1000 |
| Type of distribution valve | S valve | S valve | S valve | S valve | |
| Hopper capacity | L | 600 | 600 | 600 | 600 |
| Inner diameter of delivery pipe | mm | Φ125 | Φ125 | Φ125 | Ф125 |
| Diesel engine power | Kw | 118 | 145 | 145 | 174 |
| Max. Oil pressure of main system | MPa | 32 | 32 | 32 | 32 |
| Max. Oil pressure of mixing system | MPa | 14 | 14 | 14 | 14 |
| Dimension (length ×width ×height) | mm | 6600×1930×2190 | 6600×1930×2190 | 6600×1930×2190 | 6600×1930×2190 |
| Overall weight | Kg | 5500 | 6000 | 6000 | 6500 |
