EPDAS Concrete Pump | Efficient and Stable Concrete Conveying Solutions
Diesel Concrete Pump Machine
A concrete pump is a construction machine that continuously conveys concrete through delivery pipes using pressure. It operates with a standard diesel engine drive system, making it suitable for construction sites in areas without power supply. Equipped with portable, movable tires, it enables on-the-go operation with the ability to stop anywhere. The core advantage lies in its ability to significantly enhance construction efficiency and avoid the time and labor costs associated with manual handling.
The working structure principle of concrete pumps
The power system (diesel engine) provides the power, and the hydraulic system converts it into hydraulic energy to drive the pumping. The pumping system consists of two main oil cylinders (alternating reciprocating), two conveying cylinders (alternating suction and pushing of materials), hoppers, S valves (distribution valves, key components, ensuring continuous high-pressure conveying), and wear-resistant steel conveying pipelines.
Diesel Concrete Pump Video Show
Details on Diesel Concrete Pumps
Manufacturing of high-quality alloys and wear-resistant materials for core components
Manufacturing of high-quality alloys materials
▲ High-Strength Pumping System
S-valves and delivery piping crafted from wear-resistant alloy materials ensure extended service life and stable concrete flow.
▲ Hydraulic System
It has advanced hydraulic transmission delivers smooth power output, capable of sustained high-intensity pumping operations.
▲ Power Configuration
Optional diesel or electric motor drive delivers robust power for diverse construction conditions.
▲ Control Panel
Intuitive layout with straightforward operation for quick on-site familiarization.
▲ Chassis and Structure
Integrated welded construction delivers robust stability and superior vibration resistance for complex jobsite conditions.
▲ Lubrication System
Automatic centralized lubrication reduces component wear and lowers maintenance costs.
▲ Safety Design
Emergency stop button, anti-clogging features, and pressure protection devices ensure construction safety.
EPDAS Concrete Pumps Core strengths
Choose the plan that suits you best.
Convenient for transfer
The trailer chassis is designed with tires, which enables flexible movement and quick transfer.
Long-distance pumping
It can achieve horizontal and vertical transportation over hundreds of meters.
Multi-scenario application
From high-rise buildings to tunnel foundation applications, it meets the needs of various construction scenarios.
High pumping efficiency
The pumping performance is stable and the supply of concrete is not interrupted.
EPDAS Service and Assurance
We offer a range of high-quality services
global transportation
We provide comprehensive logistics solutions for customers worldwide to ensure the safe transportation of equipment.
spare parts supply
Provide core components and vulnerable supply guarantees to reduce downtime and waiting time.
Professional design and customization
According to different customer demands, we provide professional solutions and refined customization.
24/7 technical support
Any technical support can be consulted through means such as phone calls, emails, and online systems.

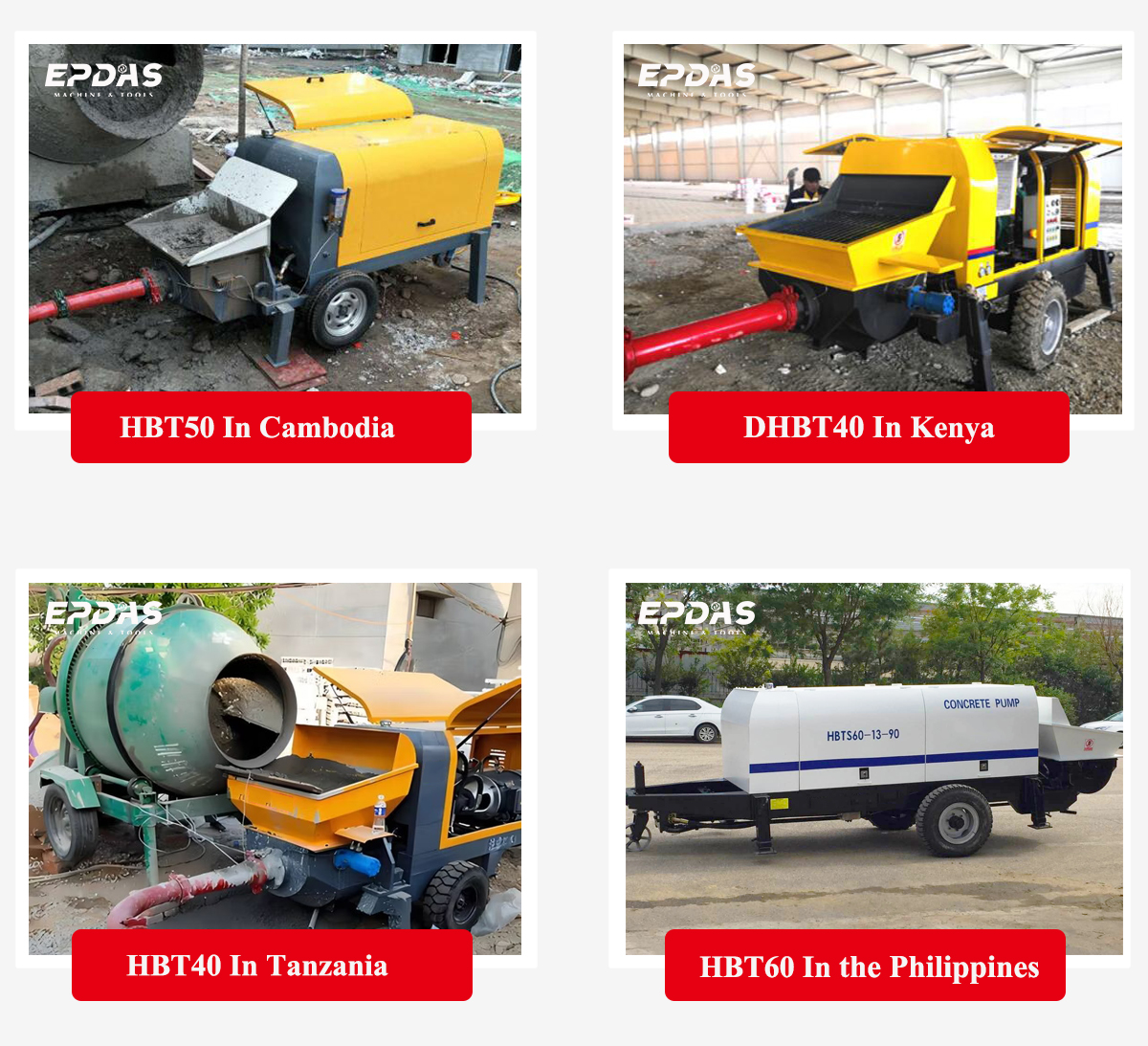

Success Case
EPDAS concrete pumps have created the majority of value for global customers. We not only provide equipment but also offer efficient construction solutions and comprehensive service support to help our partners complete engineering projects on time and with high quality.
Hot Tags: diesel engine concrete pump, China diesel engine concrete pump suppliers, manufacturers
Product Parameter
| Items | Units | DHBT60-13-118 | DHBT60-16-145 | DHBT80-13-145 | DHBT80-16-174 |
| Max. Theoretic delivery volume | m³/h | 60 | 60 | 80 | 80 |
| Max. Theoretic delivery pressure | Mpa | 12.5 | 15.7 | 12.5 | 15.7 |
| Max. Theoretic delivery height | m | 180 | 250 | 180 | 250 |
| Max. Theoretic delivery distance | m | 700 | 1000 | 700 | 1000 |
| Type of distribution valve | S valve | S valve | S valve | S valve | |
| Hopper capacity | L | 600 | 600 | 600 | 600 |
| Inner diameter of delivery pipe | mm | Φ125 | Φ125 | Φ125 | Ф125 |
| Diesel engine power | Kw | 118 | 145 | 145 | 174 |
| Max. Oil pressure of main system | MPa | 32 | 32 | 32 | 32 |
| Max. Oil pressure of mixing system | MPa | 14 | 14 | 14 | 14 |
| Dimension (length ×width ×height) | mm | 6600×1930×2190 | 6600×1930×2190 | 6600×1930×2190 | 6600×1930×2190 |
| Overall weight | Kg | 5500 | 6000 | 6000 | 6500 |
