Products Description

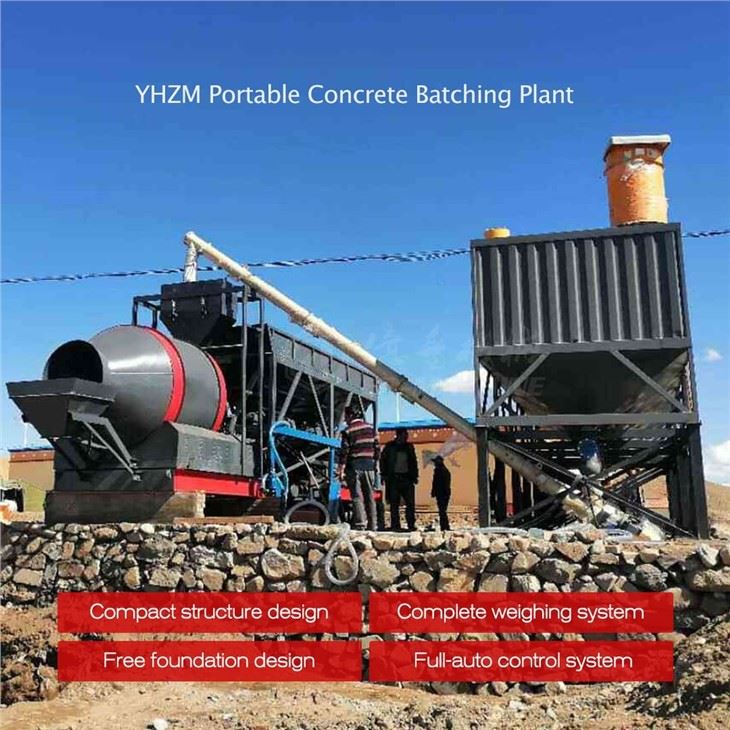

Portable concrete batch plant is a kind of mechanical equipment integrating material storage, metering, mixing and transportation functions, which is hitched on the trailer chassis and can be quickly transferred to different sites and put into production immediately.
It equipped with high-efficiency JS double horizontal shaft mixer, accurate weighing system and fully automatic PLC control, it realizes high-precision weighing and stable discharging, which is the ideal concrete solution for small and medium-sized projects. EPDAS' mobile concrete mixing plant models include YHZM25, YHZM35, YHZM75, and YHZM100. customization is possible, and brand quality is guaranteed.
The main features of the product
|
|
Convenient & fast transport |
1.The overall trailer-type design allows you to walk on the highway and is very convenient to move.
2.It is easy to disassemble and assemble, and it only takes 3 days for the first installation of the main structure.
|
|
All-in-one |
|
|
Small space site |
1.Compact structure design.
2.It can be installed on a confined space.
|
|
Foundation & Scale |
1.Equipped with a PLC automatic control system, it supports three operation modes: fully automatic, semi-automatic and manual.
2.Complete weighing system, water scale, cement scale, aggregate scale, even the additive scale.
Video display of portable concrete batch plant
the details of our product
Every design is made to enhance efficiency and safety.
Drum concrete mixer
The drum concrete mixer is integrated with the whole equipment and can follow the construction for mobile mixing. The mixing blades are installed inside to realize the continuous mixing and rolling of materials.
belt conveyor
The conveyor belt of Roller portable Concrete Batch Plant adopts belt conveyor, which is responsible for efficiently conveying aggregates (sand, stone, etc.) from the batching system to the mixing host.
weighing system
For batching in a portable concrete batch plant, the weighing system first performs an initial weighing of the material in each bin to determine the initial weight of the material. It is equipped with a load cell and can accurately weigh the aggregates.
control system
The control system adopts the most advanced upgrade mode, simple and intuitive operation, and supports remote monitoring. Compact size, can be lifted and transported as a whole.
The services we can provide
Mobile and flexible, intelligent and precise, all-round adaptable.
Strong technology
Made of cutting-edge steel, it has excellent wear resistance.
long warranty
We offer a one-year after-sales guarantee service. Feel free to contact us at any time.
24H Online Service
24-hour online consultation for various demand services.
customized service
Provide customized services based on the actual engineering situation.
Suggestions for choosing portable concrete batch plant
Remarkable Service
Select the model according to the capacity demand
Small and medium-sized projects：25~75m³/h
Large-scale projects：100m³/h
Select configuration according to the environment
Dusty area: add dust removal system and closed hopper.
Low temperature area: optional diesel heater or heat insulation.
Select function according to budget
Basic version: manual control + local operation.
High-end version: PLC full automatic + remote monitoring + environmental protection upgrade.
One-stop mechnical Factory in China
Whether you are dealing with special construction environments or creating more efficient production processes, EPDAS can provide you with professional, reliable and customized solutions.
Hot Tags: portable concrete batch plant, China portable concrete batch plant suppliers, manufacturers, , self loading concrete machine
product parameter
|
Model |
YHZM25 |
YHZM35 |
YHZM75 |
YHZM100 |
|
Theoretical capacity |
25 |
35 |
75 |
100 |
|
Concrete mixer |
JZM500 |
Jzm750 |
JZM1500 |
JZM2000 |
|
Aggregate feeding mode |
Belt type |
Belt type |
Belt type |
Belt type |
|
Aggregate batching machine |
PLD800 |
PLD1200 |
PLD2400 |
PLD3200 |
|
Max aggregate diameter(mm) |
60/80 |
60/80 |
60/80 |
60/80 |
|
Discharge height(m) |
1.1 |
1.3 |
1.3 |
1.3 |
|
Cement weighing accuracy(%) |
±1 |
±1 |
±1 |
±1 |
|
Water additive&weighing accuracy(%) |
±1 |
±1 |
±1 |
±1 |
|
Aggregate weighing accuracy(%) |
±2 |
±2 |
±2 |
±2 |
|
Total weight (T) |
12 |
13 |
16 |
26 |
|
Total power(kw)) |
42 |
46 |
67.5 |
77.5 |
