Production introduction

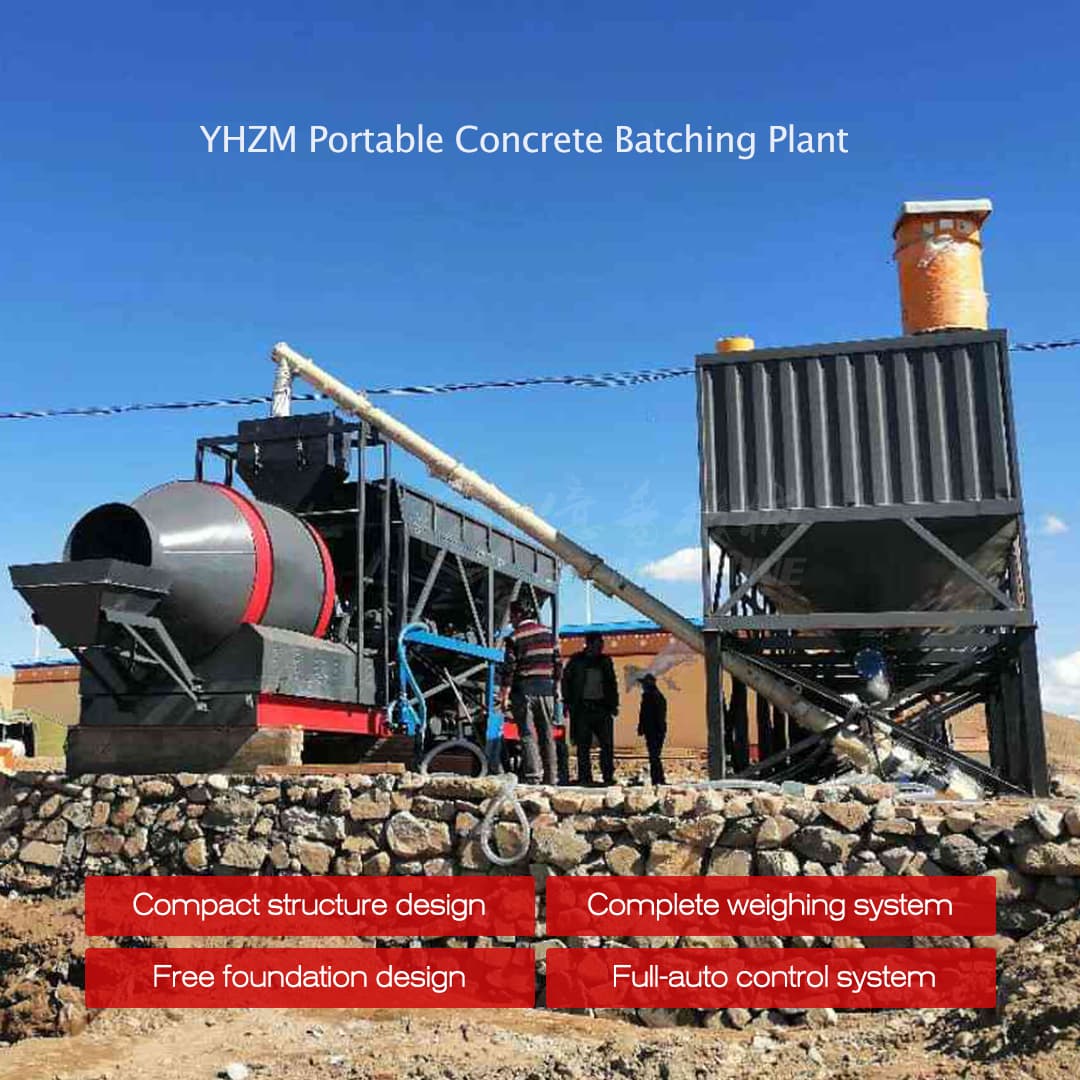

The batching plant portable station stands out in production, and its performance characteristics are fully reflected in urban construction.
1. The combined structure makes the installation and movement of the whole machine very convenient and fast.
2. The aggregate batching system of the mobile batching plant adopts an electronic scale with accurate measurement, which is accurate in measurement and high in production efficiency.
3. The proportioning of cement, water and liquid admixtures is electronically weighed, and the proportioning accuracy is high.
4. The water supply system uses a water pump to accelerate the water flow and spray evenly.
5. Components used in the control system, with printing function and air conditioning.
Details introduction
Model | YHZM75 |
Theoretical capacity | 75 |
Concrete mixer | JZM1500 |
Aggregate feeding mode | Belt type |
Aggregate batching machine | PLD2400 |
Max aggregate diameter(mm) | 60/80 |
Discharge height(m) | 1.3 |
Cement weighing accuracy（%） | ±1 |
Water additive&weighing accuracy（%） | ±1 |
Aggregate weighing accuracy（%） | ±2 |
Total weight (T) | 16 |
Total power（kw)） | 67.5 |
Delivery pictures
