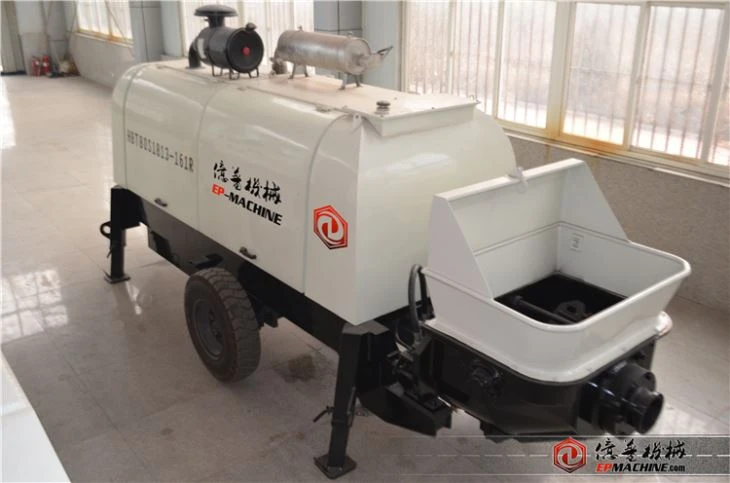

HBT60 Concrete Pump

HBT60 Concrete Pump

Brief introduction of EP EP HBT60 Concrete Pump

HBT60 concrete pump which is belong to the stationary concrete pump,Max.output is 60m³/hr. We can supply the electric engine and diesel engine. Bigger or smaller one, also can supply.

Definition: Pressure transports concrete to destination according the pipes.

Combines: Concrete pump + delivery pipes

Area application

--Concrete high-rise conveying

--Concrete long-distance conveying

--Tunnel construction

--Pre-cast factories

--Special applications

  Forward pumping                                          Reverse pumping

Features and advantages

Double pump, double circuit open hydraulic system

--Pumping hydraulic circuit is independent of S valve distributing hydraulic circuit.

--The swing cylinder oil circuit adopts the gear pump to supply oil.

Advantages:

--Whole hydraulic system more simpler.

--High efficiency, save energy

--Conveniently judge and remove trouble

Electric control system

--Self produce the control system+ cabin

--Euipment PLC

--Adopting proximity in the hydraulic cylinder, not the toughching

--Remote controller

Advantages:

-- Maintainess is simple and conveniente.

-- Components quantity is few and its reliability is high

-- Ensures that the direction can be changed reliably

-- Conveniently control the machine 100m

Mechanical system

-- The design of hopper and S valve adopts Ｉ－DEAS software to caculate

-- Mixing shaft bear and the hydraulic motor is separated.

-- Alloy steel material Glass plate

Advantages:

-- The hopper and S valve have good rigidity to avoid the  hopper distortion and S valve breakage.

-- Thougn the shaft end leakage, cannot tough the motor

-- Service lift is long

Hot Tags: hbt60 concrete pump, China hbt60 concrete pump suppliers, manufacturers, , mobile self loading mixer truck, cement pumper, concrete pumps

Main Parameter
