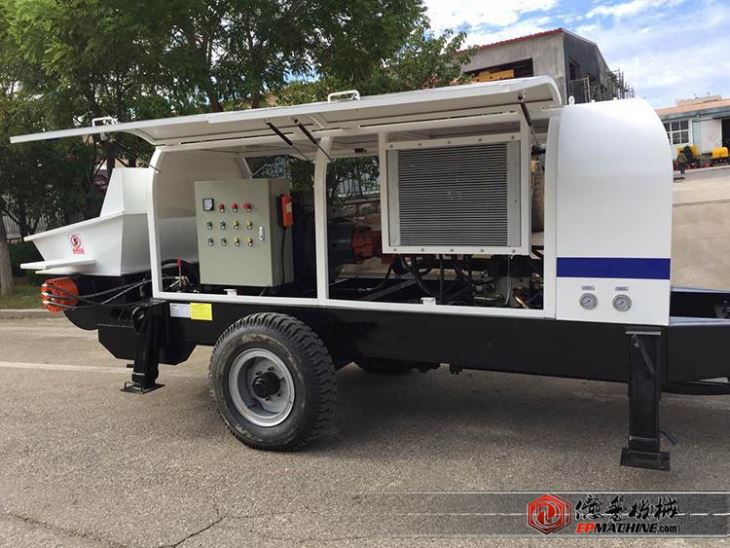

Product introduction of HBT40 concrete pump
EP machine concrete pump is mainly used for concrete high rise and long distance transport, which adopt overall hydraulic system which could prolong the machine’s service time in a great degree. Besides, for our HBT 40 electric type concrete pump, it adopt single open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with one pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components’ life is prolonged greatly.
Production details of HBT40 concrete pump
Main configuration of HBT40 Concrete Pump:
Diesel engine or electrilc engine for option
KAWASAKI main oil pump
DEUTZ or Cummins engine
Electric control system with Omron PLC
Automatic lubrication system
Forced air cooling sytem
Continuously pumping water testing before delivery
Hot Tags: hbt40 concrete pump, China hbt40 concrete pump suppliers, manufacturers, cement pumper, , , mobile self loading mixer truck, , concrete pumps
Product specification of HBT40 concrete pump
Items | Units | Parameters | ||
HBTS40-11-45 | ||||
Whole performance of machine | Max. theo. concrete output | m3/h | 40 | |
Max.concrete pumping pressure | MPa | 11 | ||
Distribution valve type | S Valve | |||
Concrete cylinder diameter×stroke | mm | Ф160×1000 | ||
Hopper capacity×feeding height | L×mm | 400×1100 | ||
Outlet diameter | mm | Ф125 | ||
Electrical engineering power | kW | 45 | ||
Rotate speed | r/min | 1480 | ||
Hydraulic system | Circuit type | Open circuit | ||
Pumping system pressure | MPa | 28 | ||
Mixing system pressure | MPa | 8 | ||
Capacity of oil tank | L | 370 | ||
The biggest transportation is away from vertically (/Level) | m | 150/500 | ||
Other parameters | Max. aggregate diameter | mm | Slick scree: 30、 Scree: 20 | |
Inside diameter of delivering pipe | mm | Ф80-125 | ||
Dimensions：length×width×height | mm | 4500×1750×1600 | ||
Total weight | kg | 3200 | ||
