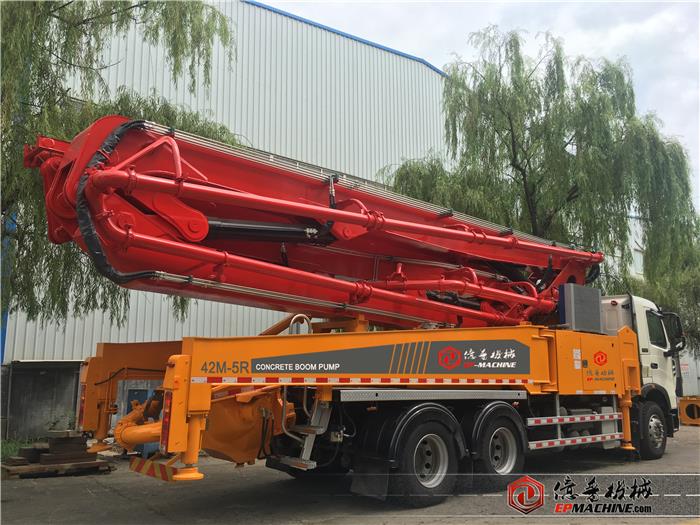

Buy Concrete Boom Pump Truck From EP
A true construction helper, fully equipped and easily mobile
What is a concrete Boom Pump Truck?
Concrete boom pump trucks can efficiently transport concrete to high-rise buildings, avoiding the cumbersome process of using baskets or elevators for concrete transportation in traditional methods. The concrete pump and hydraulic folding arm are both installed on the chassis of a car or trailer, and a conveying pipeline is laid along the arm to finally output concrete through the end hose of the conveying car machinery.
The boom has the functions of amplitude, folding, and rotation. Construction personnel can distribute materials within the reach of the boom without the need for large-scale movement. Concrete pump trucks have become the preferred model for pumping concrete construction machinery.
the application scenarios of Concrete Boom Pump Truck
Concrete boom pump trucks are widely used in various construction and infrastructure projects
Construction of high-rise buildings
Flexible extension arms and powerful pumping systems deliver concrete to high floors.
High rise building construction is one of the main application scenarios for concrete boom pump trucks. High rise buildings require precise pumping of concrete to heights of tens or even hundreds of meters, and boom pump trucks can effectively highlight their own characteristics to help complete the construction.
bridge construction
Extending the rotating vehicle body improves the construction efficiency of the bridge.
The structure of bridges usually involves different heights and spans, and concrete boom pump trucks can accurately deliver concrete to various difficult to reach parts of the bridge, especially the piers, bridge deck, and areas far from the shore, through their long arms and high flexibility.
Products video show
How does a concrete boom pump truck work.
Core advantage of Concrete Boom Pump Truck
List the four characteristics but not limited to these four.
High pumping efficiency
The concrete boom pump truck adopts ultra large displacement pumping technology, which can significantly reduce pumping frequency, improve suction efficiency, reduce component loss, and ensure efficient and stable pumping process.
Flexible operation
The boom of the concrete boom pump truck has the functions of variable amplitude, folding, and rotation, and the operator can control the entire body by simply operating the control buttons. The construction efficiency is improved and the labor intensity is reduced.
Transition efficiency
Concrete boom pump trucks are usually installed on the chassis of cars or trailers, with good maneuverability and transfer efficiency. This enables the pump truck to quickly move to different construction sites and adapt to various construction environments.
safe and reliable
The main structure of the concrete boom pump truck is made of high-strength steel plates, and the boom uses technologies such as vibration reduction, single-sided operation protection, and anti rollover control to comprehensively ensure operational safety.
Details about the concrete boom pump truck
Diesel Engine
Provide sufficient power for the entire vehicle operation
Pumping Line
Transport the concrete to the pouring site
Vehicle Carrier
For pump truck movement
Pump Truck Hopper
Used to store a certain amount of concrete
The working principle of the concrete boom pump truck
Concrete boom pump trucks achieve precise, efficient, and long-distance pumping of concrete.
Superior design of boom structure
The concrete boom pump truck's boom is usually made of lightweight and high-strength materials such as high-strength steel or carbon fiber, ensuring that the boom has sufficient strength and stiffness when subjected to pumping pressure.
Flexible adaptation
Concrete boom pump trucks are usually equipped with multi-stage telescopic legs and support legs, which can stably support on various complex terrains to ensure smooth construction.
High-performance chassis design
Boom pump trucks usually use high-performance truck chassis, with good load capacity and driving stability. It can cross gaps in buildings and adapt to uneven ground.
High efficiency power system
The power system usually uses high-performance engines and hydraulic systems to provide sufficient power to support operations such as pumping and arm movement.
EP machinery co.,ltd
EP Machinery Equipment Co., Ltd. products cover a number of fields, including construction engineering, mining, transportation and other industries, products cover the boom pump truck, telescopic arm forklift, concrete mixing station, concrete mixing pump, and other categories. We help customers improve production efficiency and reduce construction costs by providing advanced technology, high-quality products, and excellent services.
large enterprise scale
Enhance competitiveness through resource integration and scale effect, and occupy a dominant position in the industry.
Standardized Production
Our products have special quality inspection reports and comply with international standards.
High-Quality Services
Provide perfect sales services to ensure that any problems encountered by customers in the process of using the equipment can be solved in time.
We offer a comprehensive service
Having good service is the guarantee of high quality.
Free pre-sales consultation
We provide you with free pre-sales consulting services, obtain detailed product information and technical support, customize equipment recommendations according to project requirements, and answer various questions about product performance, application and maintenance.
Product customisation services
Customize equipment size, load, power and other technical parameters according to your site or production needs. Customize the functional modules of the equipment for special working environments, such as automation systems, special power configurations, etc.
Global supply chain management
Ensure that equipment can be safely and timely transported to all parts of the world. Remote equipment installation and commissioning services are provided worldwide. Help your project move forward smoothly and achieve success.
Multi-channel logistics services
Whether it is by sea, air, land, rail, or customized transport, we can provide you with efficient and reliable logistics services. Let us help you achieve fast and accurate delivery of your equipment.
After-sales technical support
After you receive the product for the first time, we will have a dedicated technical staff to contact you for installation, commissioning and other technical support.
After-sales warranty service
Provide regular equipment maintenance services, including cleaning, lubrication, replacement of wearing parts, etc., to extend the service life of the equipment. Provide original parts supply to ensure equipment can be restored quickly and reduce downtime.
Our Certificate
faq
Something you want to know.
Q:1.How far can the concrete boom pump truck transport concrete?
A:The conveying distance of the concrete boom pump truck depends on its pumping capacity and the length of the boom. Under normal circumstances, the transmission distance of the boom pump truck can range from tens of meters to hundreds of meters. For example, some high-end pump trucks, such as 70 meters and above boom pump trucks, can transport concrete to further areas.
Q:2.Is the operation of concrete boom pump truck difficult?
A:Modern boom pump trucks are equipped with advanced control systems with automated operation capabilities that allow the operator to adjust parameters such as boom position, pumping pressure and flow through a console or remote control. Operators can safely and precisely control the equipment to ensure smooth construction.
Q:3.How to confirm the performance and parameters of the equipment when purchasing the product?
A:It usually provides detailed product manuals or technical documents. You can learn about the technical specifications, performance parameters, and usage requirements of the equipment through these manuals. You can also provide live demonstrations to personally observe the working performance of the equipment.
Q:4.How long does the lead time of the equipment usually take?
A:Different types of equipment have different production cycles, and the delivery cycle of customized equipment is usually longer than that of standard equipment. The delivery time of the equipment is also affected by factors such as transportation distance and logistics.
Q:5.Does the boom pump comply with local regulations and standards?
A:EP's machinery and equipment comply with safety production standards, such as operational safety, electrical safety, mechanical safety, etc., you can rest assured that the legal risks caused by non-compliance with the standards.
Q:6.Can the purchase of machinery and equipment be paid in installments or financed?
A:We can provide installment payment or financing services to help clients reduce the pressure of one-time funds. Specific programs can contact our sales staff to communicate. The plan of installment payment is usually specified in the contract, and the payment time and proportion may be determined according to the price and delivery cycle of the equipment.
Hot Tags: concrete boom pump truck, China concrete boom pump truck suppliers, manufacturers, , , self concrete mixer machine, concrete boom
Technical Parameters
|
Model |
EP5160THB 21-3R |
EP5240THB 25-4R |
EP5291THB-37/4 |
EP5401THB-48/5 |
||
|
Item |
Unit |
Parameters |
Parameters |
Parameters |
Parameters |
|
|
Pumping system |
Max. theory output |
m3/h |
63 |
100 |
150 |
150 |
|
Theoretic pumping pressure |
Mpa |
7.5 |
8 |
8.5 |
8.5 |
|
|
Hopper capacity |
L |
450 |
550 |
700 |
700 |
|
|
Filling height |
mm |
1450 |
1540 |
1370 |
1400 |
|
|
Distribution valve |
S valve |
S valve |
S valve |
S valve |
||
|
Placing boom |
Placing depth |
m |
21 |
25 |
37.2 |
47.4 |
|
Horizontal distance |
m |
17.5 |
21 |
33.2 |
43.7 |
|
|
Placing depth |
m |
10 |
14.4 |
24.3 |
34.3 |
|
|
Pipe diameter |
mm |
125 |
125 |
125 |
125 |
|
|
End hose length |
mm |
3000 |
3000 |
4000 |
3000 |
|
|
Chassis and the whole machine |
Chassis model |
SSF1150HJP88 |
ZZ5207N5617D1 |
ZZ5307N4647C |
ZZ5437S4667C |
|
|
Wheelbase |
mm |
4600 |
4600 |
4600 |
1800 |
|
|
Engine power |
Kw/(r/min) |
97/2600 |
249/1900 |
247/2200 |
275/2200 |
|
|
Tail gas exhaust standard |
Ⅳ |
Ⅳ |
Ⅳ |
Ⅳ |
||
|
Total weight |
kg |
14680 |
19060 |
29000 |
40000 |
|
|
Overall dimension |
mm |
9570×2191×3360 |
10283×2480×3670 |
12000x2490x3850 |
13300x2500x4000 |
|
