Production Introduction

Ready mix concrete plant also known as commercial concrete batching plant, which enjoy the benefits of high production efficiency, stable performance and long service life. it enjoys transfer long distance, high efficiency, low failure rate, it has good effect for dry, rigid, plastic, and all kinds of concrete proportion, its widely used in the long duration, large work quality, and medium project, bridge and other construction project and commodities concrete productions, etc .

MODEL	YHZM25/30	YHZM35	YHZM75	YHZM100
Theory Production(m3/h)	25	35	75	100
Concrete Mixer	JZM500	JZM750	JZM1500	JZM2000
Aggregate Feeding Mode	Belt Conveyor	Belt Conveyor	Belt Conveyor	Belt Conveyor
Aggregate Batching Machine	PLD800	PLD1200	PLD2400	PLD3200
Max. Aggregate Size (mm)	60/80	60/80	60/80	60/80
Discharging Height (m)	1.1	1.3	1.3	1.3
Aggregate Weighing Accuracy (%)	±2	±2	±2	±2
Cement Weighing Accuracy (%)	±1	±1	±1	±1
Water & Additive Weighing Accuracy (%)	±1	±1	±1	±1
Total Weight (T)	12	13	16	26
Total Power (kw)	42	46	67.5	77.5
Control System	Panel	Computer	Computer	Computer

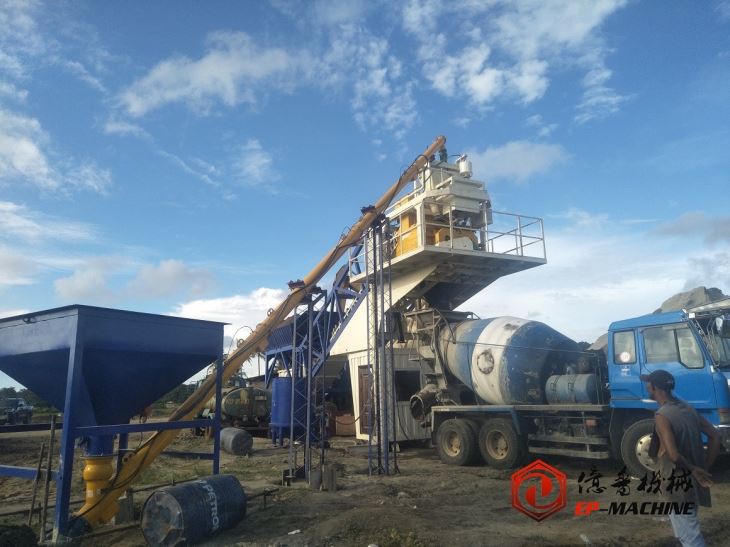

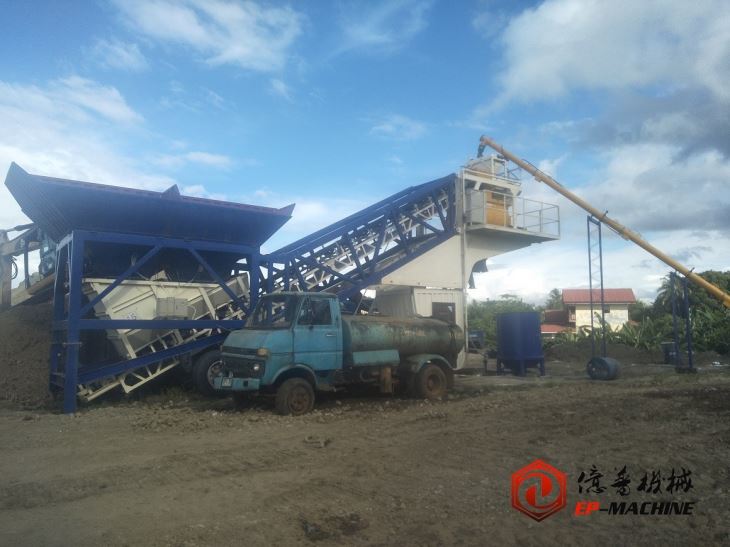

Ready Mix Concrete Plant

Main Features

1 Strong mixing performance, JS1000 twin shaft concrete mixer,with high productivity, stir even,rapid and long service life. Equipped with Planetary reducer, designed same with Italy Bonfiglioli reducer, low noise, long service life. Cr-hard cast iron mixer plates and blades, special shaft bearing and shaft-end sealing design greatly prolong the lifetime of the mixer.

2 Highest reliable performance,life. Cr-hard cast iron mixer plates and blades, special shaft bearing and shaft-end sealing design greatly prolong the lifetime of the mixer.

3 Accurate measurement accuracy. Reliable load cells to make sure the weighing accuracy, Adopt computer and meter control mode, fast calculation speed and short response time.

4 Easy to operate. Adopt computer control, which can be operated automatically and manually. Displayed by dynamic panel, which can get the operation of the various components, store and print report data.

5 Adopt twin-shaft compulsory concrete mixer as the assorted mixer.

6 Adopt the technology of “click to supplement” to ensure the accuracy of dynamic measurement no lees than ±1%。

7 Assemble two suits operating devices(touch-screen and computer )and can be operated manually, which ensure the working reliable.
