Products Description

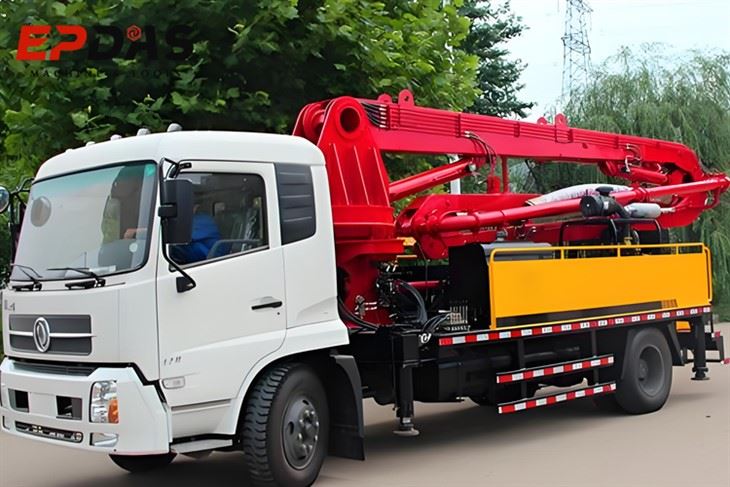

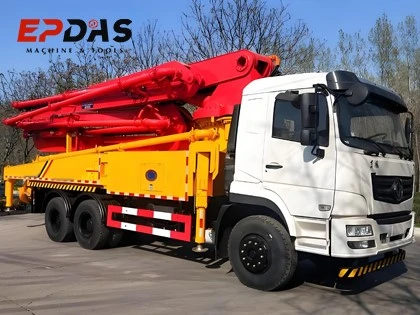

The concrete boom truck is an efficient construction equipment that combines the concrete pumping system with the vehicle chassis. It is equipped with multi-section telescopic and rotatable booms, which are flexible to operate and have a wide range of material distribution. It can transport concrete to construction sites dozens or even hundreds of meters high or at a distance, achieving rapid and precise pouring operations.
The EPDAS boom pump truck, with its flexible boom design and intelligent control system, provides efficient, safe and precise concrete pouring solutions for global customers.
Show How the concrete boom truck work
Advanced Components Of EPDAS Boom Concrete Pumps
Construction Quality and Manufacturing
concrete pumping system
It receives new concrete from external mixing equipment. EPDAS adopts the latest integral stamped hopper, and its suction efficiency is increased by 30%.
Boom(Robotic Arm)
The boom mainly composed of multiple articulated boom sections, forming a foldable and expandable structure, and is made of high-hardness steel.
delivery system
Soft-end hoses are mainly used to adjust the final layout of pipelines, ensuring the safety of the hydraulic system and preventing leakage.
hydraulic system
The hydraulic system transmits pressure through hydraulic oil to achieve smooth and precise control of each mechanism.
outriggers
The support legs extend outward to stabilize the ground during operation, providing a solid and safe guarantee.
Electronic control system
It adopts a dual control mode of "cab main panel + wireless remote control", simplifying the operation process and reducing the risk of accidents.
How Far Can A Concrete Boom Truck Reach?
The maximum length of the boom produced by the EPDAS concrete boom truck for sale is 48 meters, mainly depending on the number of boom sections and the length of each single boom section. We use a remote control to intelligently deploy the boom, which can safely and efficiently pump the concrete to the pouring site.
The actual conveying distance of the boom pump truck is not solely determined by the length of the boom, but also needs to be combined with the conveying and material distribution. Although the model indicates the working radius in meters, in actual construction, the system will be controlled electronically and hydraulically in coordination.
For small and medium-sized projects such as self-built houses in rural areas and community renovations, EPDAS 'HBC28 boom pump truck is a cost-effective choice. In large-scale projects like highways and Bridges, the 48-meter ultra-long boom pump truck can leverage its advantages to handle complex pouring scenarios such as high-pier Bridges and super high-rise basements.
EPDAS High-quality manufacturer
Why Choose EPDAS Concrete boom truck?
EPDAS has many years of experience in exporting mechanical equipment and implements strict quality control from design to production. Equipped with industry-leading intelligent boom pump truck technology, the construction efficiency has been increased by more than 35%.
Professional team
We have a professional team that provides efficient and reliable full-process service guarantees.
7x24 hours service
We offer round-the-clock service guarantees, with professional technicians providing real-time online guidance for troubleshooting.
Technology First
Our concrete boom pump truck features
Multi-section boom flexibility
The boom adopts a multi-section telescopic and folding structure. The RZ type boom structure design combines flexibility and rigidity.
High pumping efficiency
Equipped with a large-displacement main pump and a high-quality hydraulic system, it enables continuous pressure delivery of concrete.
Powerful chassis
It adopts the chassis of internationally renowned brand automobiles and is designed with a multi-axle chassis specifically for engineering purposes, which is sturdy and reliable.
Intelligent and Safe
Concrete boom truck with wireless remote control operation and multiple safety protection devices, effectively reducing operational risks and enhancing construction safety.
FAQ About EPDAS Concrete Boom Truck
01.How can I get a quotation?
02.How long is the service life of the EPDAS boom pump truck approximately?
03.How many booms does the cement boom truck have?
04.How is the after-sales service for purchasing EPDAS boom pump trucks?
05.How big is your largest pump truck?
06.How about the maintenance of the equipment and the supply of spare parts?
Hot Tags: concrete boom truck, China concrete boom truck suppliers, manufacturers
Product Parameter
| Model | HBC28 | HBC33 | HBC37 | HBC47 | ||
| Item | Unit | Parameters | Parameters | Parameters | Parameters | |
| Pumping system | Max. theory output | m3/h | 68-90 | 60-92 | 80-120 | 140 |
| Theoretic pumping pressure | MPa | 7-8 | 7-8 | 8-14 | 8.5 | |
| Theoretical Pumping Times | 26, 24 times/min | 26, 24 times/min | 28,18 times/min | 25 times/min | ||
| Concrete Cylinder Diameter * Stroke | mm | φ230*1600 | φ230*1600 | φ230*1650 | φ260*1800 | |
| Distribution valve | S valve | S valve | S valve | S valve | ||
| Placing boom | Placing depth | m | 27.3 | 32.2 | 36.5 | 46.3 |
| Horizontal distance | m | 23.95 | 28 | 30.9 | 41.2 | |
| Placing depth | m | 16.9 | 20.8 | 25.1 | 32 | |
| Boom Qty. & Folding Type | 4 & M | 5 & RZ | 5 & RZ | 5 & RZ | ||
| End hose length | mm | 2800 | 3000 | 3000 | 3000 | |
|
Chassis and the whole machine |
Chassis brand | DONGFENG | DONGFENG | SINOTRUK | SINOTRUK | |
| Wheelbase | mm |
5000 4*2 |
5100 4*2 |
4700+1350 6*4 |
4750+1350 6*4 |
|
| Engine power |
HP/ KW |
236/ 174 |
270/ 198 |
310/ 228 |
350/ 257 |
|
| Engine emission | EU-VI | EU-VI | EU-VI | EU-VI | ||
| Total weight | kg | 19850 | 20000 | 23000 | 35000 | |
|
(L×W×H) Overall dimension |
mm | 10000×2450×3650 | 10120×2450×3700 | 9800×2500×3530 | 11700×2500×3900 | |
