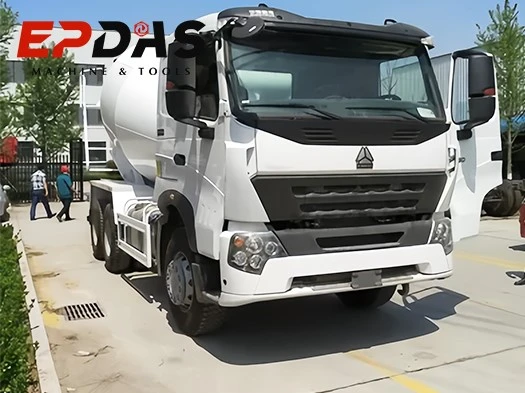

The structural characteristics of the Concrete Agitator Truck
Portable/ Mobile/ Fully Equipped/ High-level Configuration
1
Rotating Drum
The concrete agitator truck rotating drum is the most prominent core part of a concrete mixer truck, mainly used for mixing and transporting concrete while maintaining its quality. Mainly includes rotating drum, drum direction, and stirring blades.
2
Chassis (Base Frame)
The chassis is the foundation of a concrete agitator truck, designed to support the weight of the mixing drum, engine, and all other components. The chassis includes heavy-duty steel frames, axles, and suspension systems.
3
Discharge System
The discharge system can control the unloading of concrete at the construction site. Including chutes, rotating mechanisms, and hydraulic systems.
With the continuous development of construction projects, the role of concrete agitator trucks are becoming increasingly prominent. This concrete mixer is very popular with construction engineers because of its efficient and reliable characteristics. Compared with other manufacturers of mixing trucks, our product capacity is larger, can mix more concrete, improve the progress of the project, is the first choice of every engineer. Let's go below to learn more about the concrete mixer!
Use of Concrete Agitator Truck
The range of activity of the concrete mixer truck is very broad.
Transport and mix concrete
The most basic function of a concrete agitator truck is to transport concrete from the mixing plant to the construction site. The mixing drum on the vehicle keeps rotating during transportation to ensure that the concrete does not layer or crack, and to maintain stability. The rotation of the mixing bucket keeps the concrete in a mixed state during transportation, avoiding the precipitation of cement and aggregates.
Store and transport other substances
The application scope of concrete agitator truck is not limited to simple concrete mixing and transportation. The mixing drum of the mixer truck can be used as a temporary storage container to store other substances until further processing or transportation is required. In natural disasters or emergency situations, it can be used as a tool for transporting rescue supplies or equipment. In some special cases, mixer trucks are even used in the agricultural sector, such as transporting animal feed or fertilizers.
our Product Corn Technology
Quality determines the operation of the entire equipment.
Efficient concrete mixing system
The mixing host constitutes the core component of the entire concrete production system, and its performance directly determines the quality and production efficiency of the final product. Among various types, the double horizontal shaft forced mixer is widely popular due to its excellent mixing ability. The device adopts two parallel arranged mixing shafts, each equipped with carefully designed mixing blades that rotate in opposite directions, forming strong shear forces and convection effects, thereby efficiently and uniformly forcing the concrete raw materials to be mixed.
Large capacity mixing tank
The large capacity mixing tank of a concrete agitator truck usually consists of three parts: a front cone, a middle cylinder, and a rear cone, forming an optimized mixing space. This design not only ensures uniformity of mixing, but also improves mixing efficiency. The inner wall of the tank is welded with two spiral blades spaced 180 ° apart, forming a spiral channel with the tank wall. Concrete is fed, mixed, and discharged along these spiral channels. The front and rear cone segments typically use logarithmic helical blades with the same equal lift angle, while the middle cylindrical segment typically uses cylindrical helical blades with different equal lift angles to meet the needs of different mixing stages.
Strong drive system
The drive system of a concrete agitator truck consists of an engine, gearbox, drive axle, transmission shaft, and specially designed tires, which work together to ensure excellent performance and reliability of the mixer truck under various working conditions. The engine provides continuous and powerful driving force, the transmission adjusts the vehicle's speed and torque to adapt to different driving conditions, the drive axle transmits power to the tires and bears the weight and impact of the vehicle, the transmission shaft ensures smooth power transmission, and the specially designed tires provide necessary grip and stability to ensure the stable movement of the mixer truck in complex and changing construction environments.
Video about the Concrete Agitator Truck
Let's look at the overall effect
What's Special About Concrete Agitator Truck?
Here are its impressive features that may help boost your work.
High efficiency mixing system
The advanced double spiral mixing technology is adopted to ensure that the concrete is mixed evenly and the quality is stable to meet the needs of various complex projects.
All-Steel Construction
The perfect combination of excellent strength and durability, using all steel structure can significantly improve the strength, stability, and durability of the product.
Excellent assembly and manufacturing processes
CNC cutting equipment, automation welding machine, industrial fixtures, automatic robot welding production line, to ensure products quality.
High-level configuration of hydraulic system
The advanced hydraulic system supports multiple operating modes and functional integration to provide precise action control.
Powerful load carrying capacity
Reinforced load bearing components, solid support systems and precise force design make the equipment stable under high load operation.
control systerm for operator
Many modern mixer trucks feature touchscreen control panels that provide a clear and intuitive interface for operators to manage various functions.
EP Machinery Equipment Co., Ltd. has a professional team dedicated to continuously promoting technological innovation in the industry. Through continuous technological improvement and innovation, we can provide customers with efficient, energy-saving, and intelligent mechanical equipment. The company has accumulated rich experience in core technology and can provide customized solutions according to different customer needs. For example, in the design and manufacturing of concrete mixing equipment, telescopic forklifts, and other products, the company has improved product accuracy and work efficiency by adopting advanced control systems and automation technology.
Our concrete agitator truck is equipped with a high-performance engine and advanced transmission combination, with strong power and high torque output, which can easily handle starting, climbing and other working conditions when fully loaded. Even in complex construction site conditions, it can travel freely, ensuring transportation efficiency. By adopting advanced mixing technology and high-quality mixing blades, concrete can be quickly and evenly mixed to ensure its quality and performance, prevent segregation, and effectively improve construction quality.
01
High Quality
Use high-strength materials and anti-corrosion coatings to extend equipment life and reduce maintenance costs.
02
Advanced Equipment
Equipped with advanced intelligent control system, support remote monitoring and operation, to achieve real-time data feedback.
03
Professional Team
The technical team has a wealth of academic hours and experience in the industry, and can provide customers with comprehensive technical support and solutions.
04
Custom Service
Focus on establishing long-term cooperative relations with customers, listen to customer feedback and suggestions, and constantly improve products and services.
What is the Work flow of the Concrete Agitator Truck ?
Proper use can better long-term stable work.
The workflow of the concrete mixing tank truck usually includes several steps from mixing the concrete, mixing and holding during transportation, and final unloading, so that the concrete can be applied quickly and smoothly on the construction site.
1. Concrete loading stage：When the concrete is loaded, the mixer will drive to the concrete mixing station under the discharge port. After the discharge port of the mixing station is docked with the feed port of the mixing truck, the preliminary mixed concrete is loaded into the mixing drum of the mixing truck. During the loading process, the mixing drum will rotate at a lower speed.
2. Concrete mixing (Transportation process)：After the concrete is loaded into the mixer, the mixer will continue to rotate on the way to the construction site. The mixing speed at this stage is slower than when loading, usually maintaining 1-3 revolutions per minute. This low speed rotation is meant to prevent the concrete from solidifying during transportation.
3. Arrive at the construction site and discharge the materials：When the mixer arrives at the construction site, the vehicle must first be parked in a suitable position to ensure that the discharge port can be aligned with the pouring position of the concrete. At the same time, check that the discharge chute can extend and adjust the Angle properly, because the role of the discharge chute is to guide the concrete to the specific pouring area.
How to How to choose the right Concrete Agitator Truck?
A well-considered choice can conform to a virtuous cycle.
Choosing a suitable batch concrete mixer truck requires consideration of multiple factors to ensure that it can meet the needs of the project, improve construction efficiency and concrete quality.
1. Consider the distance and route of the project：If the transportation distance is long, such as over 50 kilometers, it is necessary to choose a mixer truck with a larger mixing drum capacity, which can reduce the number of transportation times and improve efficiency. At the same time, the road conditions of the transportation route should be considered. If the route includes complex terrain such as mountainous areas and muddy roads, it is necessary to choose a mixer truck with a higher chassis and good passability.
2. Consider the amount of concrete and frequency of supply：For large-scale construction projects, such as bridge construction or high-rise building construction, the amount of concrete used is large and the supply frequency is high, which may require multiple high-capacity mixer trucks to form a fleet. For small-scale residential construction or maintenance projects with relatively small usage, smaller capacity mixer trucks can be chosen to avoid resource waste.
3. Pay attention to the performance of the concrete agitator truck：It is necessary to choose a high-quality mixing material, choose an engine with sufficient power and stable torque output to ensure that the vehicle runs normally under full load, and the suspension system of the chassis should be enough to adapt to different road conditions.
Quality assurance service
convenient transportation
Mix the concrete
Attention to detail
closure property
FAQ
Q1: Is it difficult to install and assemble the concrete mixer?
Q2: Can you provide spare parts or accessories?
Q3: How about your delivery time?
Q4: Do you offer discounts?
Q5: Do you provide delivery insurance?
Now, share your unique ideas with us and let's discuss the possibilities of turning them into reality.
Contact us for more concrete agitator truck's details!
Hot Tags: concrete agitator truck, China concrete agitator truck suppliers, manufacturers, heavy duty concrete delivery vehicle, heavy duty concrete logistics vehicle, construction concrete operation vehicle, truck for transporting mixed concrete, mixer truck for concrete placement, vehicle for concrete logistics
comparison of product parameters
| Model |
CDS14HW375 |
|
Overall size (mm) |
10730 (L)*2496(W)*3900 (H) |
|
Tank body dimension(mm) |
6724*Φ2450 |
|
Mixing volume(m3) |
14 |
|
Feeding speed(m3/min) |
≥3 |
|
Unloading speed(m3/min) |
≥2 |
|
Discharge residue rate (%) |
≤0.5 |
|
High pressure oil pump |
PV090MHR\20DBC13N, Italy |
|
Hydraulic motor |
MF090V\20CBN113535, Italy |
|
Reducer |
PMB8sp, Italy |
|
Water supply system |
Water supply by air pressure (450L water tank), homemade sprinkler |
|
Air-condition |
SINOTRUK special air condition |
|
Wheel base (mm) |
1800+3600+1350 |
|
Tread f/r (mm) |
2041/1830 |
|
Max. Speed (km/h) |
85 |
|
Steering system |
Imported ZF 8098 hydraulic power steering |
|
Brake system |
Dual circuit air-pressure braking system |
|
Fuel type |
Diesel oil |
|
Engine type |
L6,Water-cooled, direct injection, supercharged inter-cooling diesel engine |
