40t/h Small mobile asphalt drum mix plant
Introduction of mobile asphalt drum mix plant

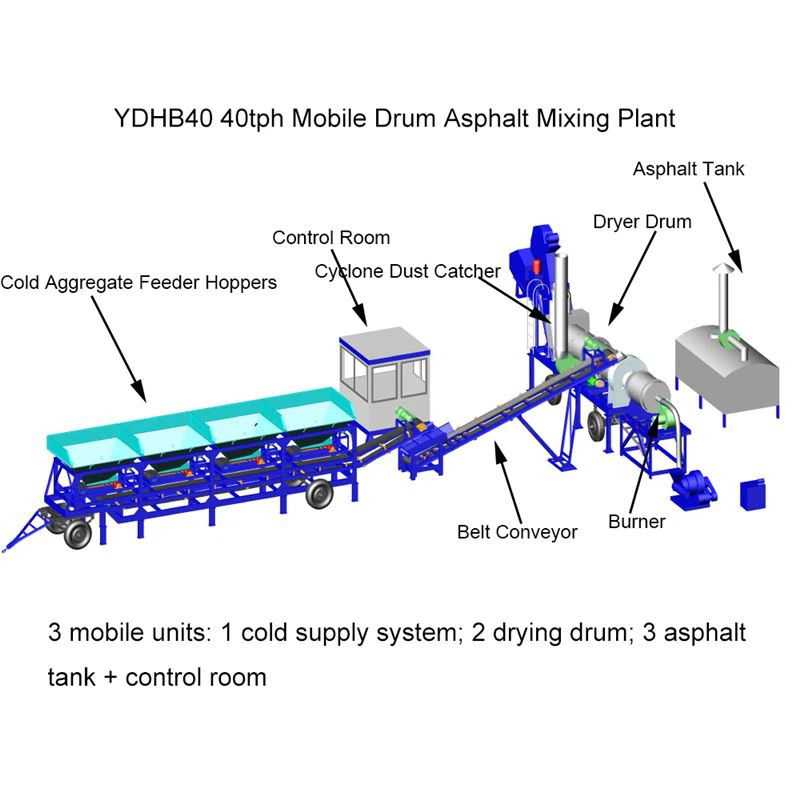

EP small mobile asphalt drum mix plant combines the advantages of mobile asphalt station and roller asphalt station. It mainly includes cold aggregate supply system, combustion system, drying drum, mixing system, dusting collecting system, asphalt supply system, electrical control system.
Parameter of mobile asphalt drum mix plant
Capacity | Measurement Accuracy | Total Power (kW) | Fuel Consumption (kg/t) | ||
Aggregate | Bitumen | Coal | Oil | ||
40t/h | ±1.5% | ±1% | 75 | 10-13 | 5.5-7 |
60t/h | ±1.5% | ±1% | 128 | 10-13 | 5.5-7 |
80t/h | ±1.5% | ±1% | 165 | 10-13 | 5.5-7 |
100t/h | ±1.5% | ±1% | 200 | 10-13 | 5.5-7 |
Main features of mobile asphalt drum mix plant
◆ The overall design of intermittent drying drum and stirring drum reduces the investment cost for customers.
◆ Forward rotation drying, reverse discharge, central wind, simple machine structure, easy to operate
◆ PLC programmable centralized control, touch screen operation, automatic manual switching freely.
◆ The mobile chassis structure makes transportation and installation fast and convenient.
Main configurations of mobile asphalt drum mix plant

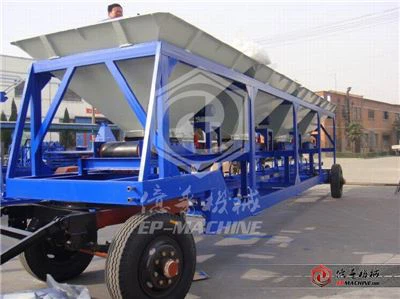

 Mobile asphalt drum mix plant Cold Aggregate Supply System According to the needs of the project, the aggregate can be divided into four different sizes, the large particles can be divided into medium-sized particles, and then the qualified materials can be sent to the drying drum through the conveyor belt. |

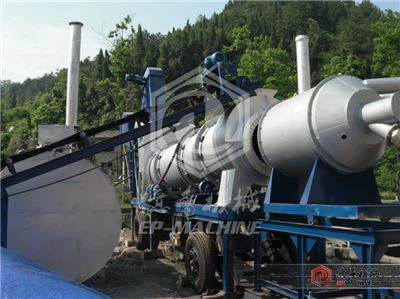

 Mobile asphalt drum mix plant Dryer Drum system The drying and mixing system consists of a drying cylinder, combustion device and fuel ignition system components. The drying drum contains 4 idlers, 2 rolling rings, 2 blocking wheels, 1 cylinder and blade. |

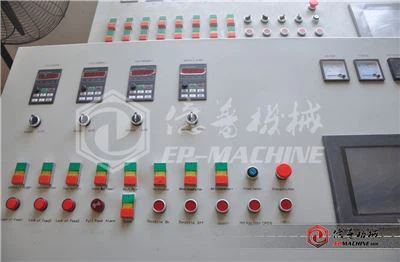

 Mobile asphalt drum mix plant control system Omron PLC and touch screen control optional, standard control is button control platform. Two-stage metering ensures measurement precision and bitumen-aggregate ratio precision Emergency manual control device on operation platform |

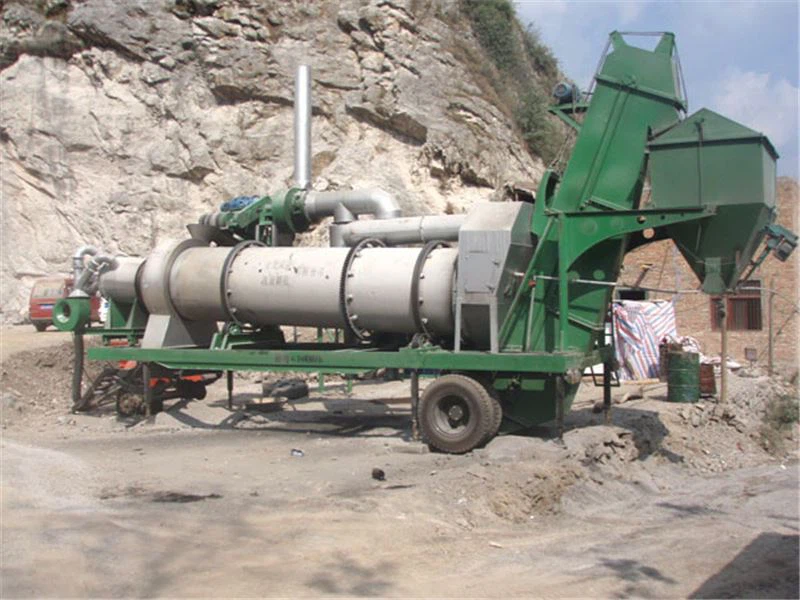

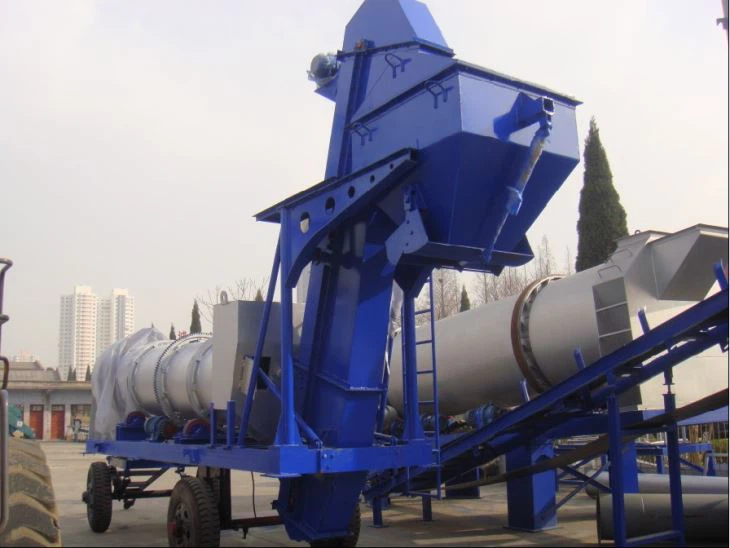

Installation cases of Mobile asphalt drum mix plant
