product Introduction

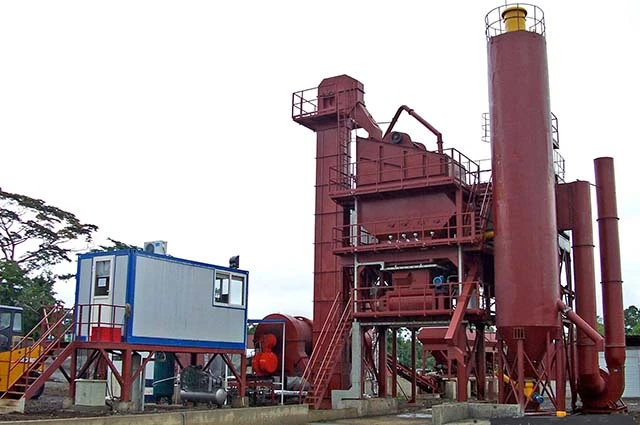

Asphalt hot mix plant is a type of continuous asphalt mixing plant that produces hot mix asphalt (HMA). Unlike batch plants, where the production of asphalt occurs in discrete batches, hot mix plants operate continuously, allowing for a constant production of asphalt.
key components
Cold Feed Bins: Similar to batch plants, hot mix plants have cold feed bins to store different sizes of aggregates (such as stone, sand, or gravel). The aggregates are then fed into the drying drum.
Drying Drum: Aggregates are heated and dried in a rotating drum. The drum is equipped with a burner system that uses fuel to generate heat. The dried aggregates move through the drum, and the hot gases from the burner system help in the heating process.
Hot Elevator: Once dried, the hot aggregates are lifted by a hot elevator and then sieved through vibrating screens to separate different sizes.
Weighing System: The separated aggregates are then accurately weighed before entering the mixing unit. Precise weighing ensures that the asphalt mix meets the specified requirements.
Projects
1
Batch Asphalt Mixing Plant In Russia
2
Asphalt Hot Mix Plant In Qatar
3
Asphalt Mixing Plant In the Philippines
Hot Tags: asphalt hot mix plant, China asphalt hot mix plant suppliers, manufacturers
| Model | EP-LB60 | EP-LB90 |
| Rated Capacity | 45-60TPH | 60-90TPH |
| Mixer capacity | 800kg | 1100kg |
| Cold hopper | 4*6.5m3 | 4*6.5m3 |
|
Drying drum
(Diameter×Width) |
1.2*5.2m | 1.5*6.6m |
| Bag Filter area | 230m3 | 420m3 |
| Vibrating screen | 4/5 | 4/5 |
| Bitumen heating Burner | 15*104kcal/h | 30*104kcal/h |
| Bitumen tank capacity | 15t | 30t |
| Control system | PLC+Touching screen /Control computer | |
