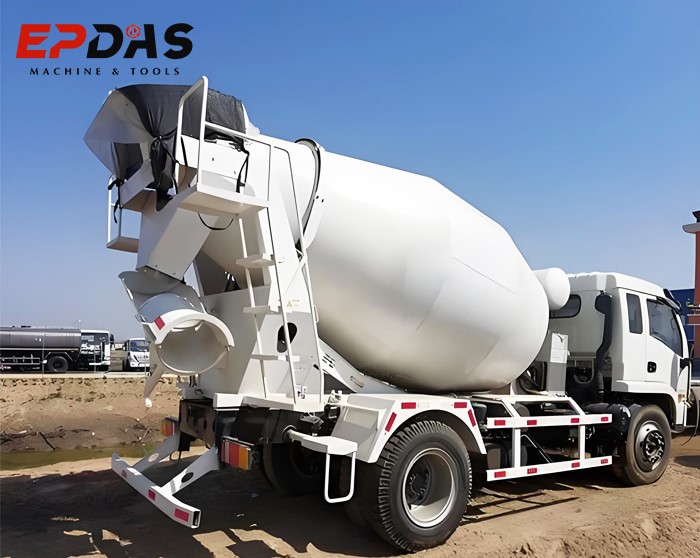

The structural characteristics of the Batch Concrete Truck
Portable/ Mobile/ Fully Equipped/ High-level Configuration
1
Mixing Drum
The key feature of batch concrete truck is its mixing tank on the vehicle. The mixing tank maintains the mixing and flowability of concrete by rotating, preventing the separation of cement slurry and aggregate. The rotating shaft device ensures uniform mixing of concrete.
2
Chassis
Batch concrete mixer trucks are usually made by installing and modifying a Class II specialized chassis that has been standardized for production. This chassis has been specially designed and optimized to meet the needs of heavy-duty cement carrying trucks.
3
Discharge System
The discharge port of a batch mixer truck usually includes a disc-shaped valve and a discharge port. The valve is controlled to open and close by a hydraulic device to regulate the speed and amount of concrete flow out.
With the continuous development of construction projects, the role of batch concrete truck are becoming increasingly prominent. This concrete mixer is very popular with construction engineers because of its efficient and reliable characteristics. Compared with other manufacturers of mixing trucks, our product capacity is larger, can mix more concrete, improve the progress of the project, is the first choice of every engineer. Let's go below to learn more about the concrete mixer!
Scope of application of Batch Concrete Truck
The range of activity of the concrete mixer truck is very broad.
Civil Engineering Projects
For example, in road construction, these batch concrete trucks are crucial for building and maintaining roads, including highways, interstate highways, and local streets. Bridge construction is also a key material for bridges, and concrete transport vehicles are used to transport and pour concrete for bridge decks, piers, and abutments.
Small and Medium-Sized Projects
For example, in rural and underdeveloped areas, batch concrete mixer trucks are commonly used for building and maintaining roads and other infrastructure. For short-term and small-scale projects that only require a limited amount of concrete, batch concrete trucks provide a flexible and cost-effective solution.
our Product Corn Technology
Quality determines the operation of the entire equipment.
Efficient concrete mixing system
Racing concrete against time, the mixing tank of the batch concrete mixer truck adopts automatic mixing method, and the concrete is uniformly mixed inside the truck through the mixing device to ensure the uniformity and stability of the concrete. Compared to other mixing methods, concrete mixer trucks have better mixing effects and can significantly improve the quality of concrete. The precise mixing technology ensures that every batch concrete mixer truck is responsible for the quality control of the project, ensuring that each batch of concrete has the best workability and strength, and building every solid building.
Powerful concrete mixing tank
Each batch of mixer trucks uses high-quality sealing materials and structural design for their mixing tanks, which can effectively prevent material leakage during operation. By using high-speed rotating impellers or specially designed agitators, the material is ensured to be uniformly mixed in all directions and without dead corners inside the tank. Whether it is high viscosity fluids, powders, or granular materials, ideal mixing effects can be achieved in a short period of time. And the mixing tank not only ensures efficient mixing, but also has low energy consumption and low noise, which meets the environmental standards of modern green construction and helps projects achieve sustainable development.
Flexible and convenient
Construction projects in urban centers are often greatly limited by space, with small construction sites and dense buildings, narrow streets, and bustling crowds around. The overall body design of the batch concrete mixer truck is very compact and exquisite, allowing it to travel freely between vast construction sites and quickly reach various construction sites. And when arriving at the next construction site, it can also continue to complete the concrete mixing work, which is very convenient and perfectly adapted to various construction site environments and requirements. If you want to transport and mix at the same time, then choose a concrete mixer truck is a good choice.
Video about the concrete mixer truck
Let's look at the overall effect
What's Special About Batch Concrete Truck?
Here are its impressive features that may help boost your work.
High efficiency mixing system
The advanced double spiral mixing technology is adopted to ensure that the concrete is mixed evenly and the quality is stable to meet the needs of various complex projects.
All-Steel Construction
The perfect combination of excellent strength and durability, using all steel structure can significantly improve the strength, stability, and durability of the product.
Excellent assembly and manufacturing processes
CNC cutting equipment, automation welding machine, industrial fixtures, automatic robot welding production line, to ensure products quality.
High-level configuration of hydraulic system
The advanced hydraulic system supports multiple operating modes and functional integration to provide precise action control.
Powerful load carrying capacity
Reinforced load bearing components, solid support systems and precise force design make the equipment stable under high load operation.
control systerm for operator
Many modern mixer trucks feature touchscreen control panels that provide a clear and intuitive interface for operators to manage various functions.
Since its establishment, EP Machinery Equipment Co., Ltd. has always adhered to the corporate philosophy of "leading technology, quality-oriented", and is committed to providing customers with efficient and reliable mechanical equipment solutions. We not only have advanced production technology and rich industry experience, but also drive development with innovation, constantly breaking through technological bottlenecks and leading the industry forward.
EP Machinery is uncompromising in the selection of raw materials, especially in the use of high-strength materials. These materials have been rigorously screened and stand out among numerous new materials. They have extremely high strength and toughness, and can resist tremendous pressure and impact forces. Meanwhile, EP Machinery adopts precision manufacturing technology in its manufacturing process. From the processing of the smallest parts to the assembly of large components, every step is carried out under high-precision equipment and strict quality monitoring.
01
High Quality
Use high-strength materials and anti-corrosion coatings to extend equipment life and reduce maintenance costs.
02
Advanced Equipment
Equipped with advanced intelligent control system, support remote monitoring and operation, to achieve real-time data feedback.
03
Professional Team
The technical team has a wealth of academic hours and experience in the industry, and can provide customers with comprehensive technical support and solutions.
04
Custom Service
Focus on establishing long-term cooperative relations with customers, listen to customer feedback and suggestions, and constantly improve products and services.
What is the working principle of a Batch Concrete Truck?
Proper use can better long-term stable work.
The working principle of the cement truck mixer is the rotation of the mixing bucket, the support of the hydraulic system, and the control system to ensure uniform and stable mixing of concrete during transportation. Continuous mixing and timely unloading can safely and timely transport high-quality concrete to the construction site to meet construction needs.
The main function of the batch concrete truck is to mix the concrete raw materials evenly and maintain their fluidity during transportation, ensuring that the concrete is still in an ideal state when it arrives at the construction site.
1. Before the mixer starts：Add the required raw materials for concrete (such as cement, sand, gravel, water, etc.) into the mixing tank according to the ratio. According to construction requirements, the specific mix ratio of concrete may vary. Usually, a weighing device is equipped on the concrete mixer truck to accurately measure and mix different materials.
2. Tank rotation：The core part of the mixer is the mixing tank, which is a large cylindrical tank. The mixing tank rotates clockwise with the blade device to continuously mix and stir the raw materials, and when unloading at the construction site, the mixing tank rotates counterclockwise to discharge the concrete.
3. The power source of the batch concrete mixer truck：The power core of a concrete mixer truck lies in the engine, which drives the hydraulic system or electric motor to operate efficiently through a precise transmission mechanism, thereby promoting the stable and powerful rotation of the mixing tank. The advanced hydraulic system used in the concrete mixer truck ensures a smooth and efficient mixing process with its powerful driving force.
How to How to choose the right batch concrete mixer truck?
A well-considered choice can conform to a virtuous cycle.
Choosing a suitable batch concrete mixer truck requires consideration of multiple factors to ensure that it can meet the needs of the project, improve construction efficiency and concrete quality.
1. Selection of tank volume: Due to the different types of concrete required at the construction site, the tank capacity of the mixer truck should be determined based on the scale of the construction project and the demand for concrete.
2. Chassis selection: Choose a suitable chassis based on the total weight and road conditions of the batch concrete mixer truck to ensure that the vehicle has sufficient load-bearing capacity and good passability.
3. Selection of mixing system: When selecting the mixing device, high-quality tank materials should be selected, and high-quality blade materials can better mix concrete. And the angle and distribution of stirring blades have great influence on the stirring effect.
Quality assurance service
convenient transportation
Mix the concrete
Attention to detail
closure property
FAQ
Q1: Is it difficult to install and assemble the concrete mixer?
Q2: Can you provide spare parts or accessories?
Q3: How about your delivery time?
Q4: Do you offer discounts?
Q5: Do you provide delivery insurance?
Now, share your unique ideas with us and let's discuss the possibilities of turning them into reality.
Contact us for more product details!
Hot Tags: batch concrete truck, China batch concrete truck suppliers, manufacturers, concrete mixer for leveling, , , asphalt mixing
comparison of product parameters
| Model |
CDS12HW340 |
|
Overall size (mm) |
9870 (L)*2500(W)*3990 (H) |
|
Tank body dimension(mm) |
5790*Φ2300 |
|
Mixing volume(m3) |
12 |
|
Feeding speed(m3/min) |
≥3 |
|
Unloading speed(m3/min) |
≥2 |
|
Discharge residue rate (%) |
≤0.5 |
|
High pressure oil pump |
ARK pump, Italy |
|
Hydraulic motor |
ARK motor, Italy |
|
Reducer |
PMB7.1sp, Italy |
|
Water supply system |
Water supply by air pressure (450L water tank), homemade sprinkler |
|
Air-condition |
SINOTRUK special air condition |
|
Wheel base (mm) |
4025+1350 |
|
Tread f/r (mm) |
2022/1830 |
|
Max. Speed (km/h) |
78 |
|
Steering system |
Imported ZF 8098 hydraulic power steering |
|
Brake system |
Dual circuit air-pressure braking system |
|
Fuel type |
Diesel oil |
|
Engine type |
L6,Water-cooled, 4-strokes supercharged inter-cooling diesel engine |
